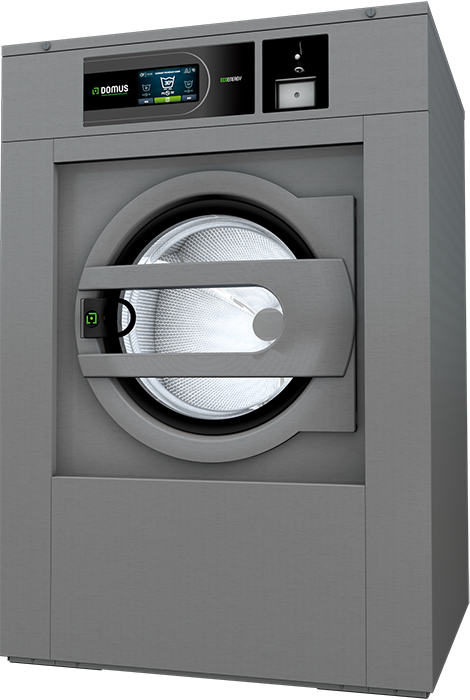

HIGH SPIN WASHERS: DHU - 60 / 80 TOUCH II

TOUCH II
User friendly and totally programmable 7” Touch II
USB Connection. PC software free of charge for programming, traceability, data analysis…
Videos on display (ads, instructions)
37 languages
8 dosing signals as standard

G FACTOR
High G-Factor: G-FACTOR 450 for high spin washers

EFFICIENCY
Intelligent Weighing System
Optimal loading
Water Recovery tanks ready: ECOTANK
Low water consumption

VERSATILITY
Make to order: customization
OPL < > COIN
Electric < > Hot water
Drain valve < > Pump
Wet cleaning features

CONNECTIVITY
Remote technical service
Managemant of laundries: OPL and COIN
Remote payment

ERGONOMICS
Biggest door diameters: Ø 18"(for DHU-60) and Ø 22" (for DHU-80)
Easy opening/closing system for door lock

MAINTENANCE
Hinged panel: easy access to parts
Equivalent parts for all models: contactors, electronic devices, gear
Technical menu: traceability, error diagnosis

OTHERS
Grey skinplate outer casing
Drum and tub in stainless steel AISI 304
Detergent dispenser with 4 compartments
Electronic control of imbalance with frequency control
LOADING AID feature: water and rotation control
ETL, CE, WRAS and EAC approved product.


OPTIONS

• Double drain
• Normally closed valve
• Water RE-CYCLE: recirculation of bath water
• Levelling feet
• Auto Weight: automatic weighing sensor system on feet (Includes kit with 6 extra dosing signals)
• Relay card with 6 extra dosing signals: up to 14 signals
• Printer
• DomusConnect communication
• Silicon gasket (for DHU-60)
• Reversible door opening
• Steam kit to transform an E or HW heated machine into steam version
• Plinth to level all machines from top
• Plinth to align loading height door base at 33.46 inches (850mm)
• Stainless steel AISI 304 outer casing
• Stainless steel AISI 304 front panel
• Maritime voltage for electric models: 440V III 50/60 Hz
• No neutral
• Voltage 230 V III 50/60 Hz (for DHU-80)
• Coin/token kit
• Delayed door opening in case of power outage
